Dosing and mixing system

Dosing and mixing system is used for injection molding and extrusion industry need a variety of raw materials in proportion for accurate mixing occasions, mixing accuracy up to ±0.1%. The series of products all use PLC controller, and the use of advanced batching algorithm, to ensure that the series of products of high quality and comprehensive technical characteristics, so that the product performance is excellent, stable and safe and reliable operation.

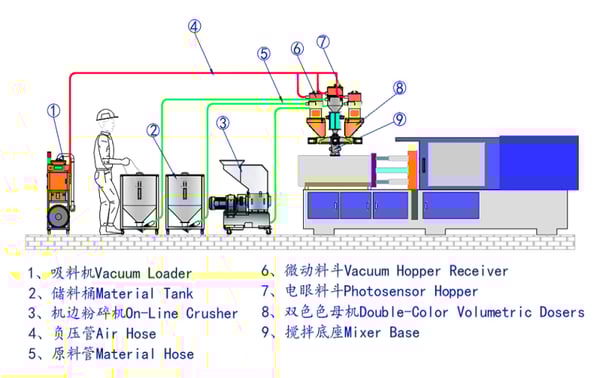

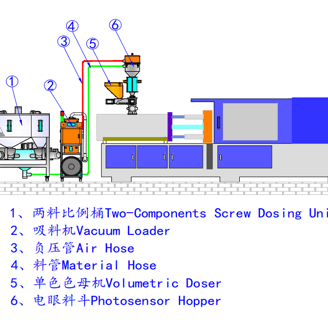

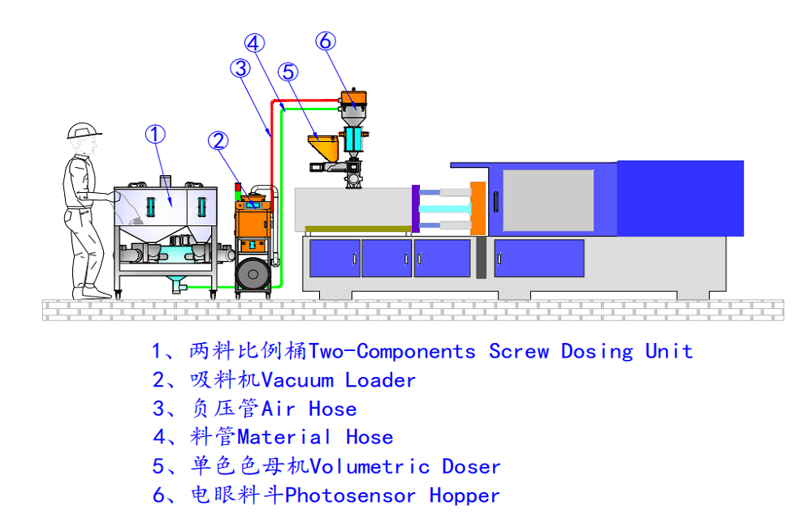

It can be applied to extruder and injection molding machine mode can detect block of color master, overload, automatic stop protection and alarm can be selected stirrers, meet the customer's double mixing requirements single volumetric doser can be selected the main hopper, convenient for customers to add the main raw material weighing master mixing machine, is a kind of injection molding, extrusion molding and blow molding processing, Precision instrument that automatically mixes one main material with one or two color masterbatch materials or additives in proportion.

The series of products using PLC editing controller, can accurately measure the color masterbatch and additive ratio; Using the touch screen as the user interface, more intuitive, convenient. The mixer can run synchronously with all kinds of molding machine signals, so there is no need to store a lot of pre-dyeing raw materials, to ensure the consistency of molding products. Screw diameter is divided into 12, 14, 16, 20, 25 five kinds, can provide different output of 0.04 to 32 kg per hour for customers to choose.
