Central Conveying System

The central conveying system is designed for the production of plastic products in the injection molding workshop to achieve uninterrupted uninterrupted unmanned continuous molding operations. According to the need to change the variety of raw materials, the combination of multi-color materials, coloring process automation. The system can regenerate and use the cold feed at the injection port in a fully automatic way, which can control all the feeding equipment and prevent the occurrence of blockage in the storage bin, and realize full automation by setting a central monitoring platform.

The central conveying system adopts microcomputer centralized automatic control to realize 24 hours continuous feeding operation of granular material. A number of small microcomputer control each machine coloring process, accurate measurement, uniform mixing, and can flexibly change the color, to meet the requirements of multiple colors and varieties of products. According to the production of different molding machines, flexible change of the amount of material. Multiple feed pipe design, can ensure the main material diversification requirements. The system has a variety of monitoring and protection functions, safe and reliable work. Central conveying system alias: central conveying system, automatic feeding system, etc.

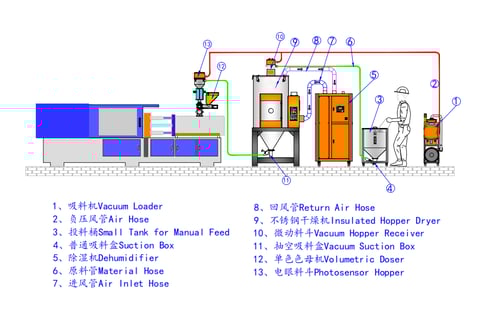

Working principle: The central conveying system adopts the vacuum transmission mode, and transmits the plastic raw materials from the storage tank to the central dehumidification and drying system through the centralized piping system, and then transmits the dried raw materials to each injection molding machine. The central conveying system adopts the design of "one machine and one pipe" to ensure the air of the whole system to transport the raw materials and prevent the raw materials from returning moisture after dehumidification and drying. At the same time in each transmission stable operation, no plugging phenomenon. It is used with the central dehumidification and drying system, which can be used to clean the conveying pipeline after the dehumidification and drying cycle, to ensure that there is no residual particle in the pipeline, to avoid the raw material moisture back at the same time, but also to ensure the same performance of the raw material added to the injection molding machine. Under the action of vacuum negative pressure, the original dust of raw materials will be filtered out through the dust filtration system, which is helpful to improve the quality of molding products.
